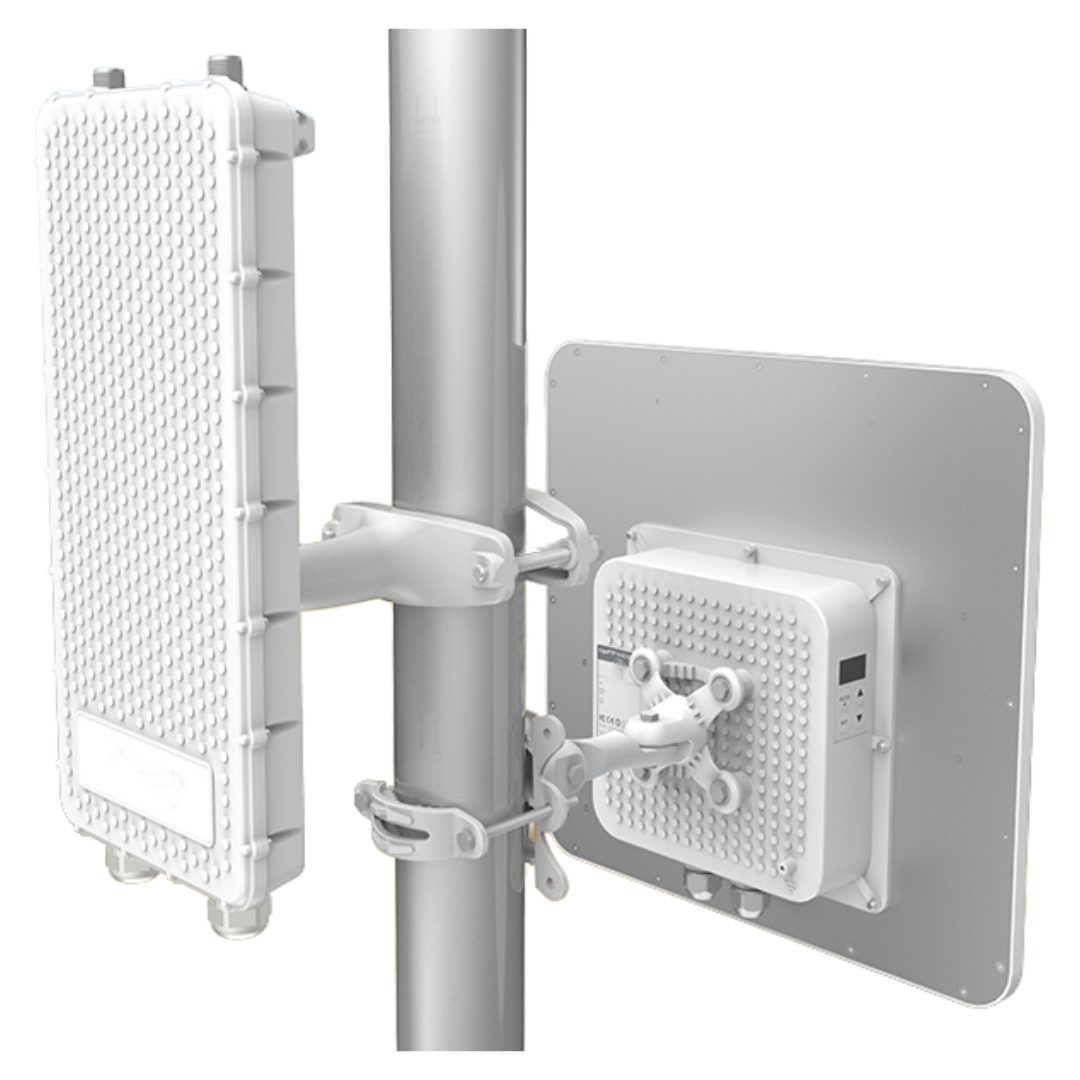

Access Point



An Access Point (AP) is a device that enables wireless devices to connect to a wired network via Wi-Fi. It acts as a bridge, extending the coverage area and providing internet or intranet connectivity to devices like smartphones, laptops, or tablets. Access point are commonly used in offices, schools, and homes to create wireless networks and improve signal strength in areas with weak connectivity. They can be standalone devices or integrated into routers, offering features like multiple frequency bands (2.4GHz, 5GHz), security protocols (WPA2, WPA3), and support for high-speed data transfer.

TECHNICAL SPECIFICATION

Standards
IEEE 802.11b/g/n/ax on 2.4GHz | IEEE802.11a/n/ac/ax on 5GHz
 Processor
Qualcomm® 1Ghz Quad-Core CPU with dedicated NSS
 Antenna
Inbuilt 5 dBi omnidirectional antennas
 Physical Interface
2x 10/100/1000 BASE-T, RJ-45 Ethernet Port
 LED Indicators
1 x Power| 2 x LAN | 1 x 2.4 GHz/ 5 GHz
 Power Source
Power-over-Ethernet: 802.3af/at or Proprietary 48V |IEEE 802.11e Compliant Source|
Active Ethernet (PoE)
 Maximum Power Consumption
20W
 Surge Protection
2KV

WIRELESS SPECIFICATIONS


Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz
 Operation Modes
AP, Mesh
 Frequency Radio
2.4GHz: 2400 MHz ~ 2482 MHz
 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
 Transmit Power
2.4 GHz: 26 dBm | 5 GHz: 26 dBm
 Radio Chains/Spatial Stream
2x2:2
 Supported Data Rates (Mbps)
2.4 GHz: Max 600 | 5 GHz: Max 2400
 Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams
 Channelization
802.11ac supports very high throughput (VHT)—VHT 20/40/80/160 MHz
802.11n supports high throughput (HT)—HT 20/40 MHz
802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM) 802.11n/ac packet aggregation: AMPDU, ASPDU

MANAGEMENT

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging| Cross-band VLAN Pass Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliant with IEEE 802.11e Standard | WMM
SNMP
v1, v2c, v3 | MIBI/II, Private MIB
Wireless Security
WPA2 AES-PSK/WPA2 Enterprise
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
Https
SSH
Client Isolation

MECHANICAL SPECIFICATION



Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC | Storage: -40Fº~176ºF/-40ºC~80ºC
Humidity (non-condensing)
Operating: 90% or less | Storage: 90% or less
Waterproof & Dustproof
IP60-Rated Enclosure
Dimensions
Weight: 0.5Kg | Width: 7" (180 mm)| Length: 7" (180 mm)| Height" 2" (50 mm)
