FFTH DROP CABLE ROUND WITH GFR-YARN DESIGN (NO FRP) ( Up to 4F )

CONSTRUCTION DETAILS

1F per tube - Blue Colour
4F per tube - Blue, Orange, Green & Aqua/Natural Or Any Colour
PBT Loose Tube Filled With Thixotropic gel
Glass fibre roving to meet tensile strength & anti buckling properties GFR (Non Metallic) - 2 Nos - 600 TEX.
UV Proof HDPE - Black

FTTH DROP CABLE ROUND WITH FRP DESIGN (NO GFR-YARN) ( Up to 4F )

CONSTRUCTION DETAILS

1F per tube - Blue Colour
4F per tube - Blue, Orange, Green & Aqua/Natural Or Any Colour
PBT Loose Tube Filled With Thixotropic gel
2 FRP x 0.5mm FRP to meet tensile strength & anti buckling properties FRP (Non Metallic) - 2 Nos
UV Proof HDPE - Black

Sub Category DRUM COIL FRP YARN JACKET

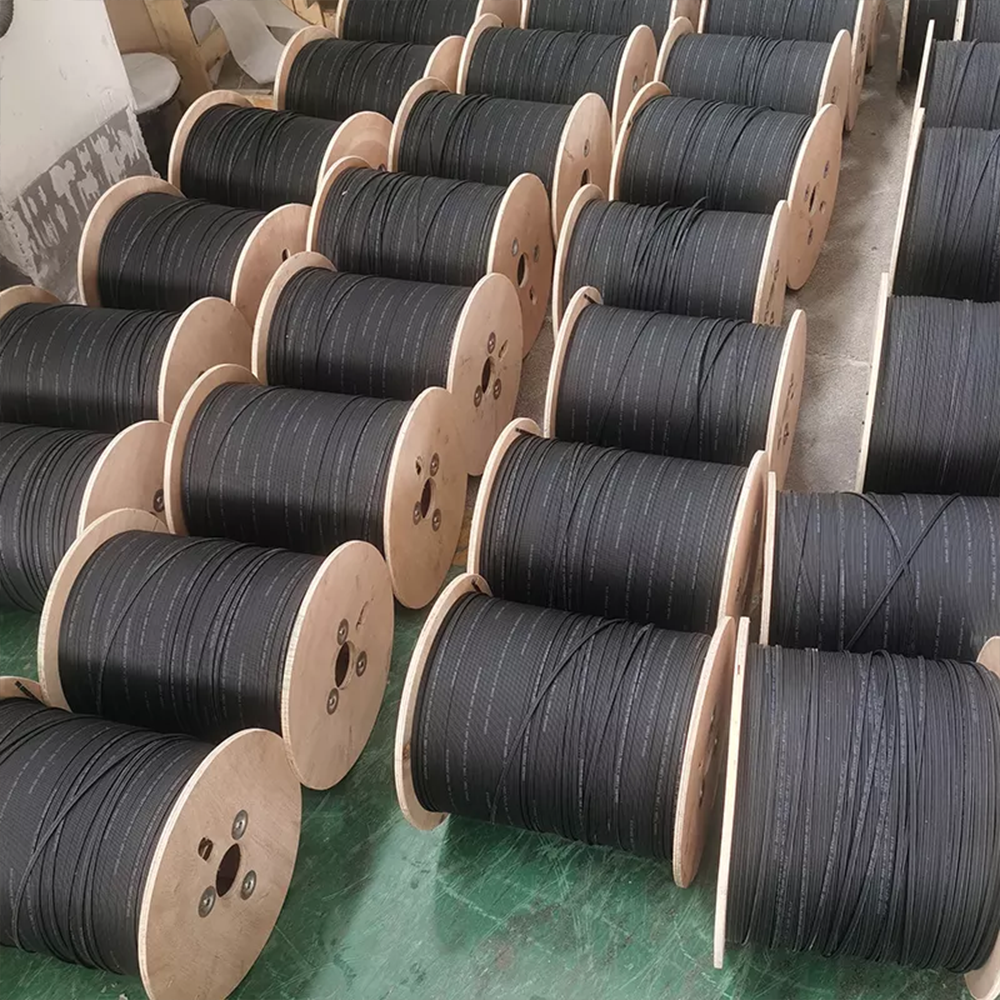

1F & 2F FTTH Drop Cable Round with GFR-Yarn Design (No FRP) Available in 2Km & above 01 Kms & above NA 2 GFR HDPE
2F & 4F FTTH Drop Cable Round with FRP Design (No GFR-Yarn) Available in 2Km & above 01 Kms & above 2 FRP NA HDPE

Fibre - Colour Coding

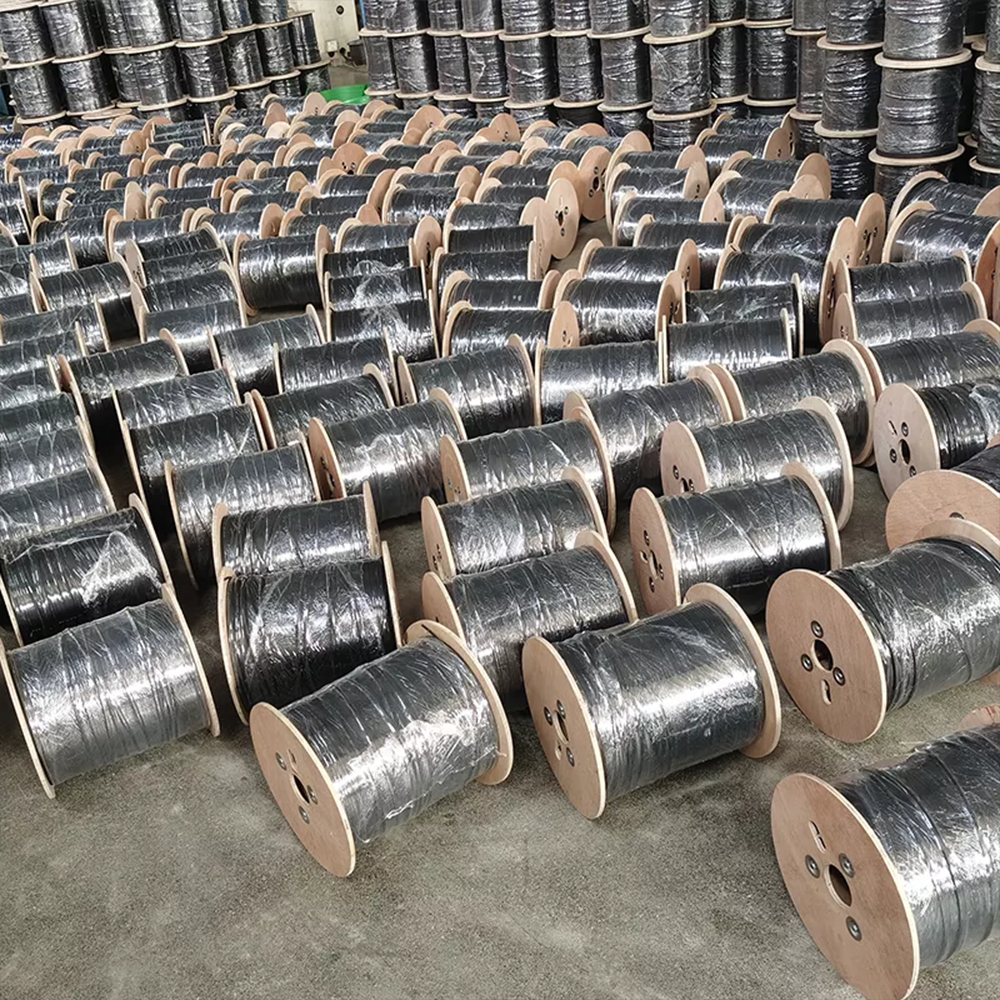

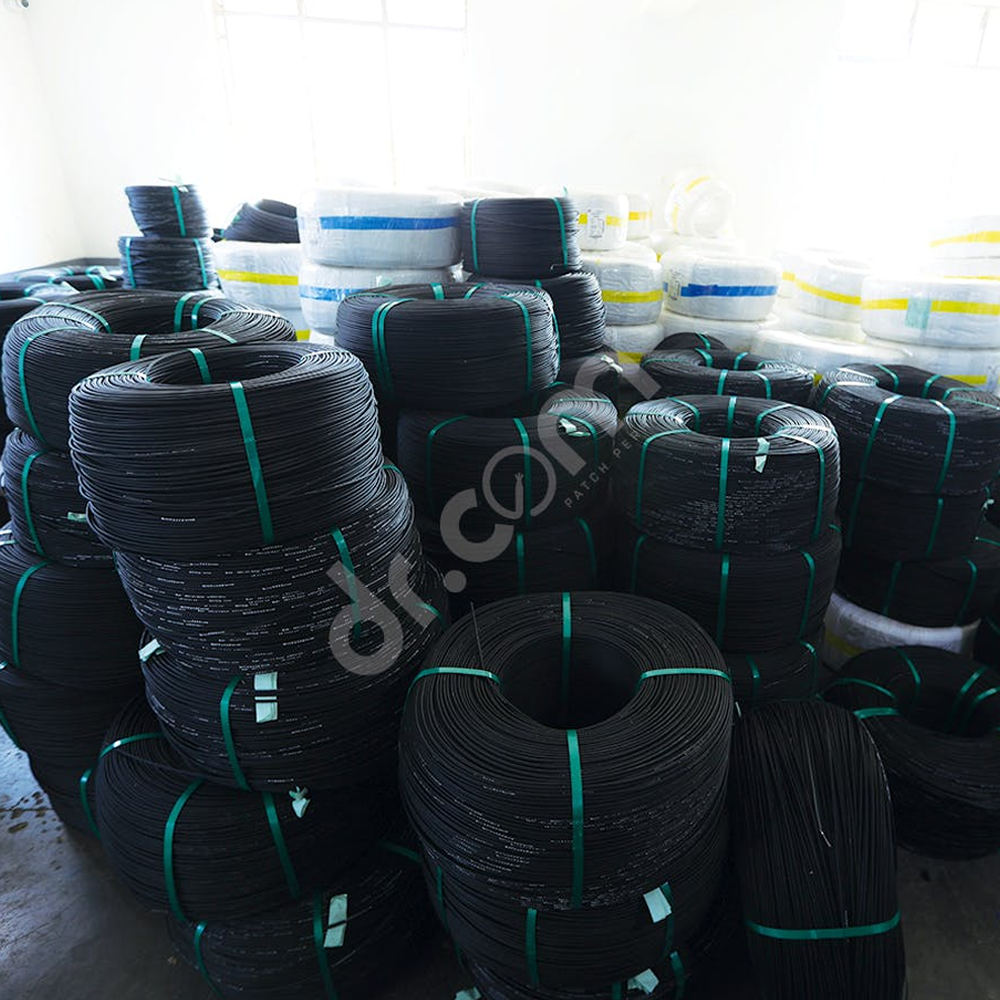

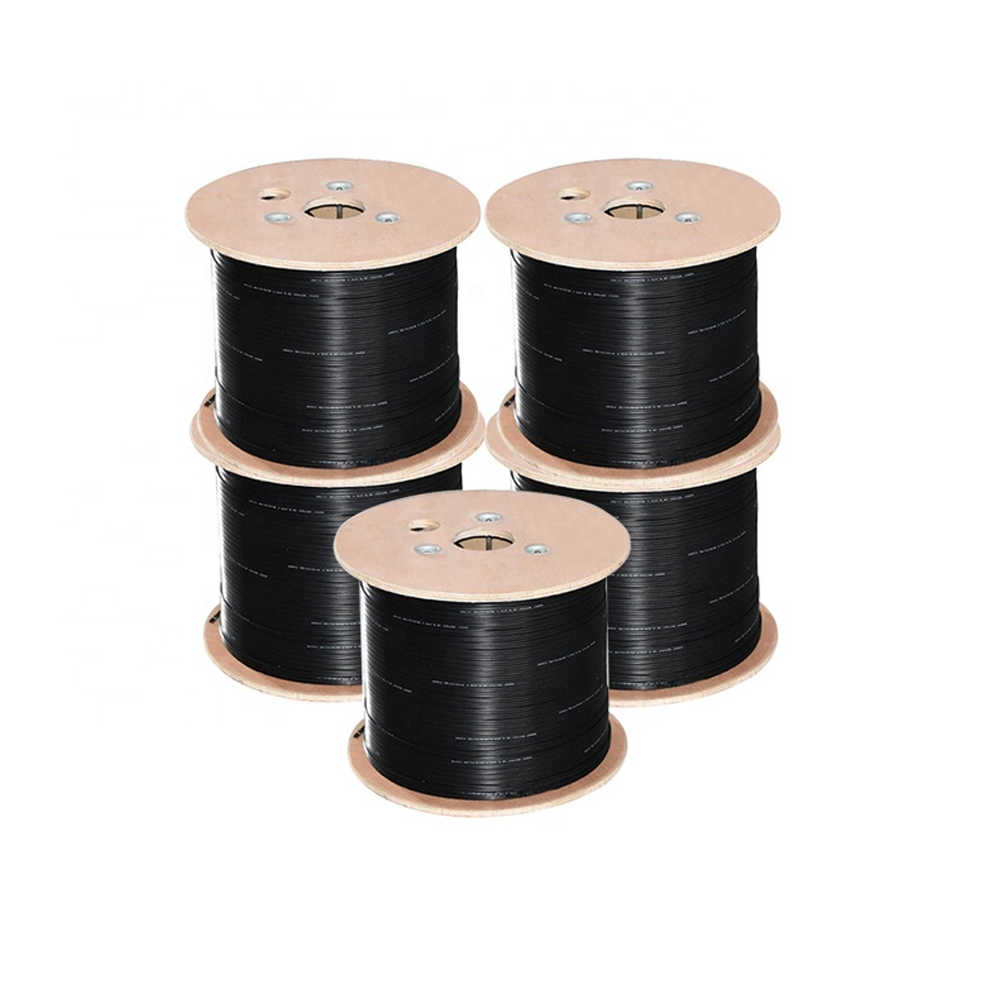

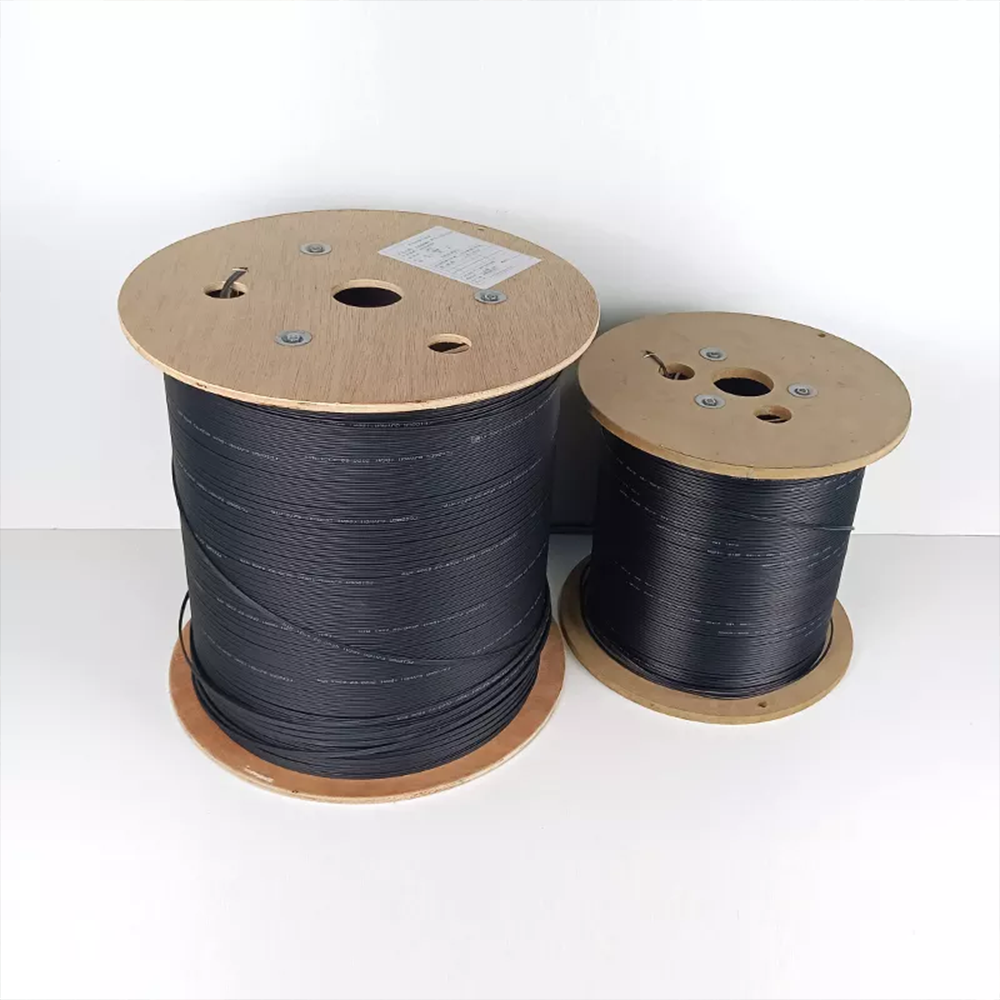

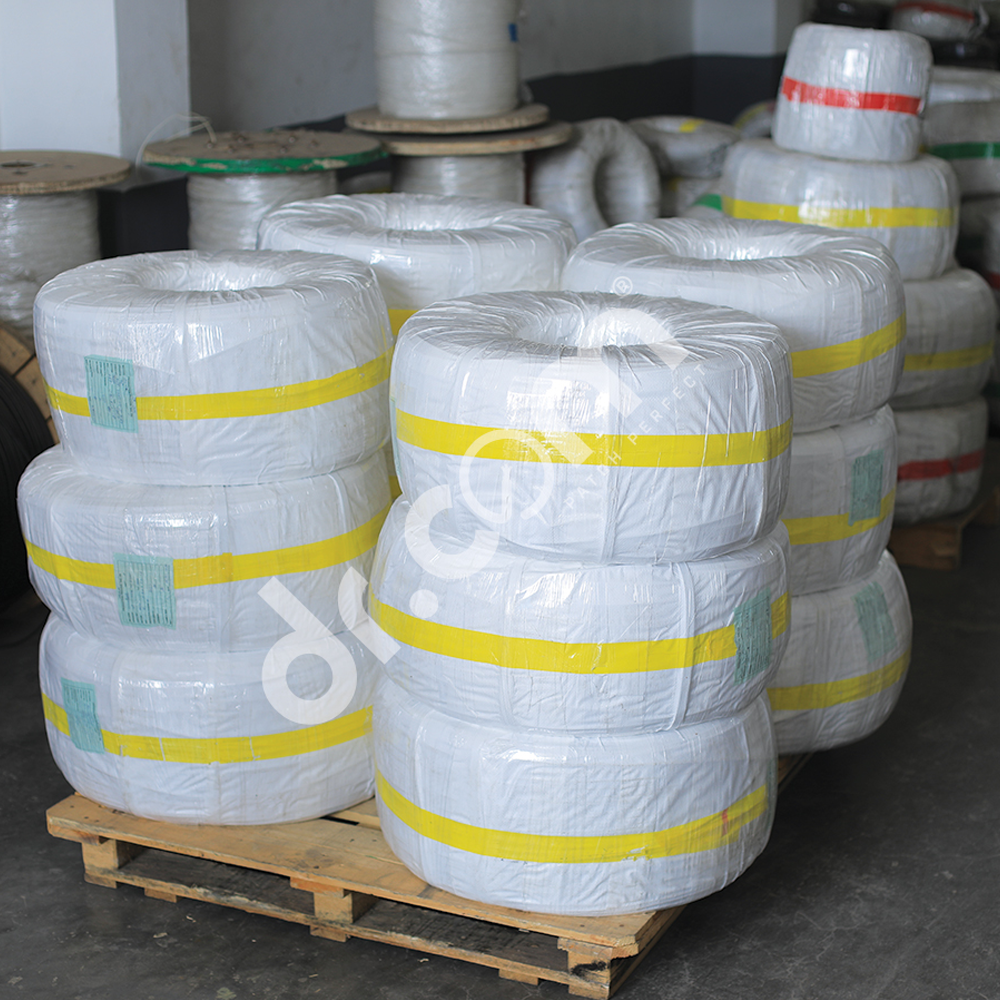

Our Gallery
