MPO Cables


MPO Cables MTP®/MPO trunk multifiber cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environments, reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized MTP®/MPO fanouts, spanning MDA, HDA and EDA zones

Features

Conec MTP® connector, Senko MPO Plus® premium connector
SMF-28® Ultra optical fiber, Corning Clearcurve® OM3/OM4 fiber, YOFC Maxband® OM5 fiber
OS2, OM3, OM4, OM5 available
0.35dB elite low loss connector
Factory terminated and tested
Allow easy migration from 10GbE to 40GbE or 100GbE
Pulling eyes are provided as an option to protect the fiber ends during installation

Standards Compliance



RoHS, CE (EN 50575 CPR), ISO9001 and WEEE Compliant
EIA/TIA, Telecocordia GR-326-CORE Standards
IEC61754-7
TIA 605-4 (FOCIS 5)
YD/T1272.5

TECHNICAL SPECIFICATION

Construction Description
Fiber Count 8-144 Fibers
Fiber Mode Single Mode: OS2 9/125μm
Multimode: OM3/OM4/OM5 50/125μm
Fiber Brand OS2: SMF-28® Ultra optical fiber
OM3/OM4: Corning ClearCurve® fiber
OM5: YOFC Maxband® fiber

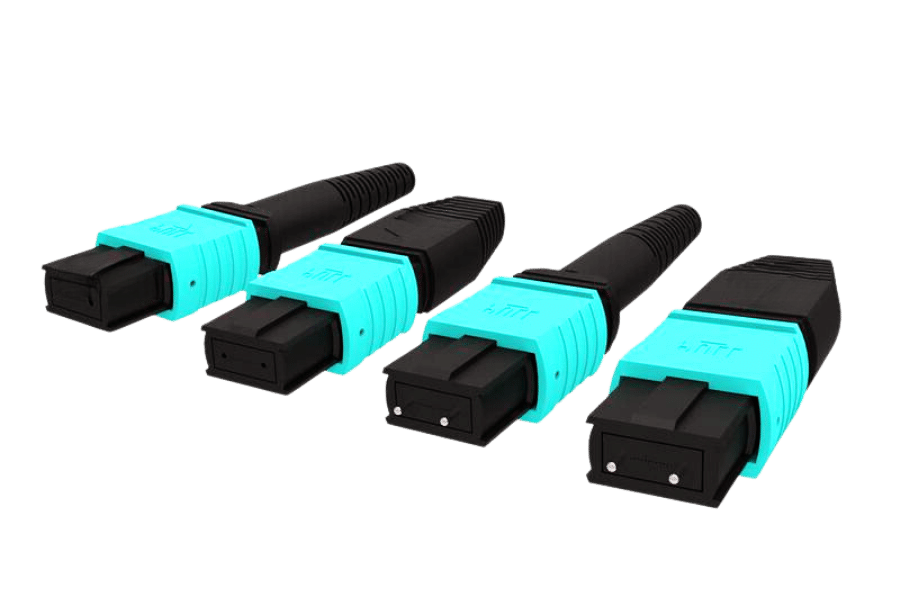

Connector Type MTP® Female, Male; MPO Female, Male
Connector Brand US Conec MTP®, Senko MPO Plus®
Polarity Type A, Type B, Type C
Cable Jacket Ratings Plenum (OFNP) Low Smoke Zero Halogen (LSZH) Riser (PVC)
Cable Type Bunch
